Multi-pipe penetrations

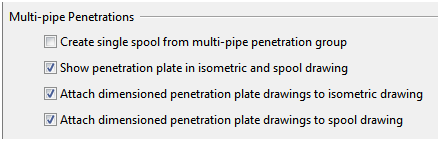

In the Configure Piping Isometrics dialog, the Multi-pipe Penetrations section contains the following settings.

Create single spool from multi-pipe penetration group – Select this option to specify that a multi-pipe penetration group must be assigned to a single spool group.
Show penetration plate in isometric and spool drawing – Select this option to add the following symbol and dimensioning to penetration plates. The symbol shows the side of the penetration plate against the hull target plate.
Attach dimensioned penetration plate drawings to isometric drawing – Select this option to add a dimensioned drawing of the penetration plate to isometric drawings. The location for the attachment is added from Pipe Settings.
Attach dimensioned penetration plate drawings to spool drawing – Select this option to add a dimensioned drawing of the penetration plate to spool drawings. The location for the attachment is added from Pipe Settings.
