Drawing Export

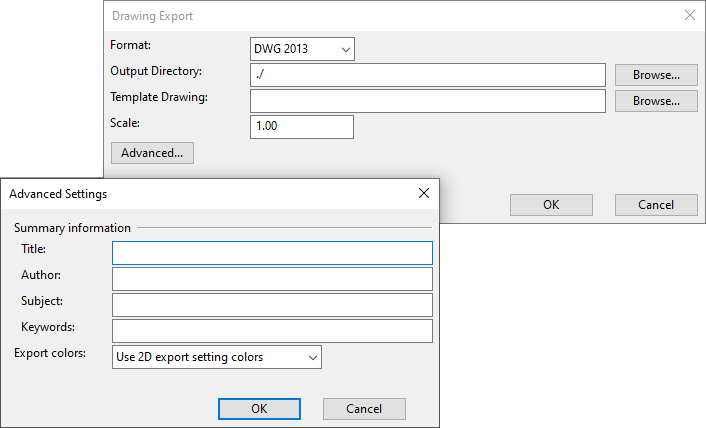

In the Drawing Export dialog, you can select whether to export drawings in DXF, DWG, DWF, PDF, SVG, BMP, DGN V8, JPEG, or PNG format. With AutoCAD® DWG formats you can use a template file to define basic settings for exported files. Also the output directory and the scale factor can be changed. Usually the scale factor is 1, meaning the original sheet size. The dimensions for the sheet are: A1 is 841 x 594 high, A2 is 594 x 420.
