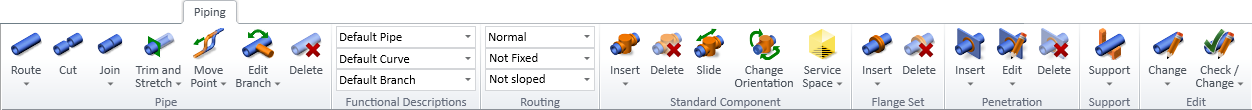

Piping tab
The Piping tab of Plant Modeller contains tools for routing pipelines. In pipe routing you specify the points where the centerline of the pipe changes direction. The straight pipe components and curve components to be used are defined in the piping specification; the functional descriptions of default components are "Default Pipe" and "Default Curve". You are not requested to specify component materials because this information is taken from the piping specification. All piping objects must belong to some Pipeline and System, as described in Systems and Lines.
