Systems for containments

When containments are imported from NAPA or CADMATIC Hull, containments will get their systems automatically, according to fixed definitions. There is one fixed system name and system ID number for each type of 3D space.

When containments and systems for containments are generated manually, it is recommended to apply the same principle—one dedicated system for each different type of 3D space. Select the colors so that it is easy to distinguish for example compartments from blocks or blocks from super blocks. The default transparency level can be set in File > Options > User Settings > Visualization > Transparency.

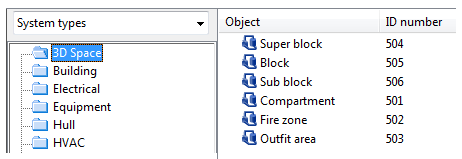

Reserve some range of system ID numbers for the systems of 3D spaces. In the following example, the range starting from ID number 500 is reserved for the systems of 3D spaces.
