Edit data

Do the following:

1. Select Home > Data group > Edit.

2. Select the vessel, the pump and all the valves.

3. Press Enter.

4. Click Yes to generate a position ID for the valves. The database editor dialog opens.

5. Enter the following data for the components:

   • For the vessel: Material, medium, temperature, volume

   • For the pump: Manufacturer, capacity, pressure, power, medium

   • For the valves: Position id, description, body, box, disc, packing materials, connection types, nominal pressure, max temperature, length

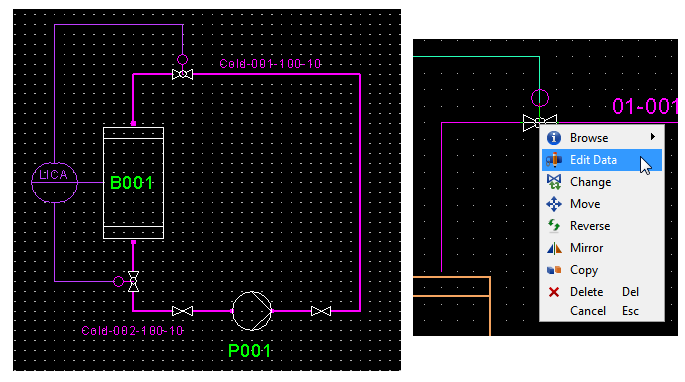

You can also edit data one component at a time.

Do the following:

1. Right-click the object whose data you want to edit.

2. Select Edit Data.
