Move and align a view

You can also place a view in the area that is reserved for the bill of material. In this exercise, move the Front_dwg view beside the Leftside_dwg view and align them.

Do the following:

1. Select Pages > Set View Position & Scale to move the Front_dwg view beside the Leftside_dwg view.

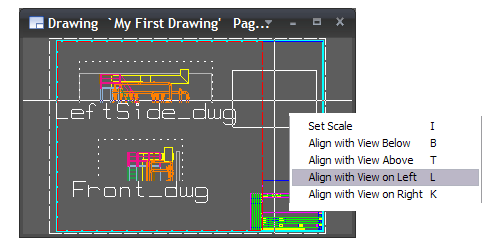

2. Press L to align the Front_dwg view with the Leftside_dwg view.

   Now, the Front_dwg view is aligned (locked horizontally) to the Leftside_dwg view.

3. Click to place the view.
