Select active weld context

The active weld context is defined by the combination of:

• Select active weld context
• Logistic 3D space
• Weld group
• Weld system

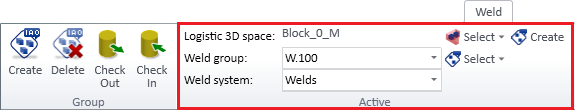

Set the correct properties in the Active group.

Logistic 3D space

There are two ways to select the current logistic 3D space:

• Using containment browser – Select a 3D space which determines the logistic context.

• Using pick – Select an object, and the program selects the logistic context based on the logistic membership of the selected object.

Weld group

You can select a group from a list of weld groups in the logistic 3D space.

Weld system

You can select a system from the list of weld-specific systems.
