View device occurrences

Do the following:

  1. Open the E-0-Schematics-01-501.drw file included in the example project.

  2. In the Electrical window, select Devices (location) from the uppermost drop-down menu. By default, the Electrical and Electrical 2 windows open to the left side of the screen.

  3. Open node =123.

  4. Open the Q10 node to see a list of all occurrences in all project drawings.

    Bold text means the item is in the current drawing, while gray means the item is in another drawing.

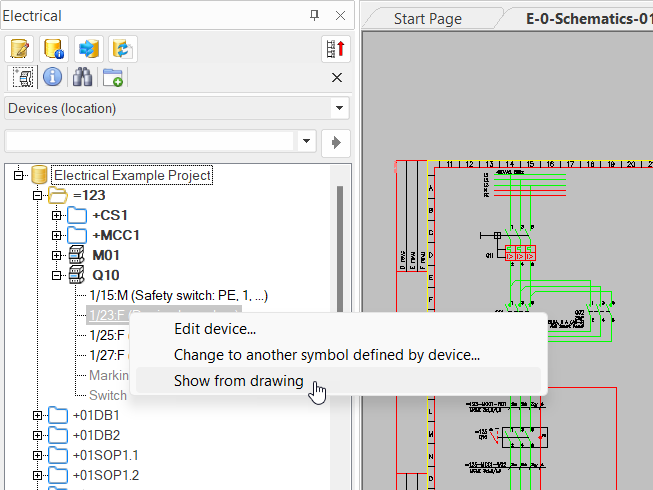

  5. View device occurrences by right-clicking them, and selecting Show from drawing.

    6. The first occurrence is shown. You can view the next device occurrence by pressing Enter.

Stop viewing occurrences by pressing Esc.
