Draw busbars

Single-line tab > Cabinets and feeders group > Busbar

With this function, you can draw a busbar.

Do the following:

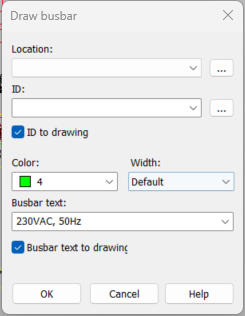

  1. Indicate the start point for the busbar. The Draw busbar dialog opens.

  2. Change the information as necessary.

    • All location types are allowed.

    • ID is required.

    • You can select 0.25, 0.35, 0.50, 0.70, 1.00, 1.40, or 2.00 as the line width.

  3. Click OK.

  4. Indicate the end point for the busbar.
