Save and edit your own symbols

Layout tab > Devices group >  Symbols menu > Save user symbol
Layout tab > 3D and view group > 3D functions menu >  3D symbol functions menu > Save user 3D symbol

With this function, you can create and save your own symbols.

If you only want to add attributes to an existing symbol or do some simple edits to the symbol graphics, for example, you do not need to explode the symbols before using these save function. However, if you want to use all CADMATIC drawing functions when editing the graphics, you need to explode the symbols into basic elements and edit symbol graphics before using the save function.

Do the following:

  1. Select objects to include in symbol to be saved. Alternatively, press Enter to select the symbol from the menu.

  2. If selected objects did not include ID attribute, indicate insertion point for it.

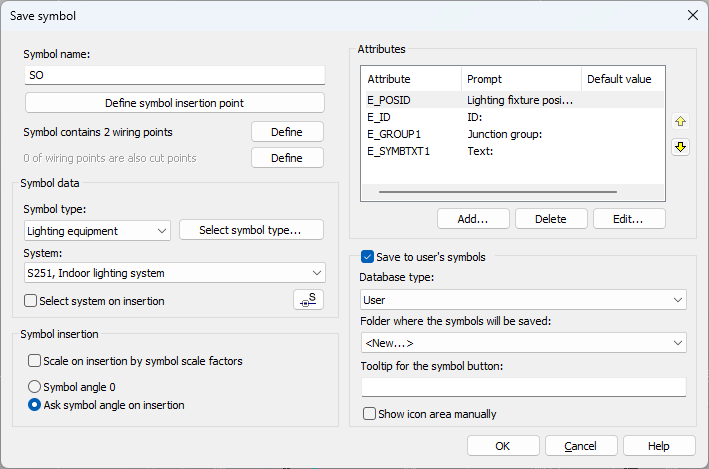

  3. Indicate symbol's insertion point. The Save symbol dialog opens.

  4. Define symbol data:

    • Symbol name – Enter the name of the symbol to be saved. The function adds SO by default but you can name the symbols any way you want.
    • Define symbol insertion point – Click to define the insertion point.
    • Symbol contains X wiring points – Here, you can see the number of wiring points in the symbol. Symbols have to include one or more wiring points i.e. points where the wire or cable can be connected (like a real terminal of equipment). Therefore, it is important to draw all lines (wires or cables) from one wiring point to another.

      • Do the following:

      1. Click Define.

      2. Indicate the wiring point to which you want to draw the wiring.

      3. Indicate the wiring point's number attribute i.e. the attribute from which to read the connection information.

    • X of wiring points are also cut points – Only used with diagram symbols.
    • Symbol data
      • Symbol type is important for the functions to recognize the symbol to certain electric symbol.
      • With Select symbol type, you can select several subtypes.
      • From the System drop-down menu, select the system the symbol belongs to. If you want to define the system when inserting the symbol, select Select system on insertion. Alternatively, take the system from another element by clicking the (Pick system from drawing) button.
    • Symbol insertion
      • Scale on insertion by symbol scale factors – The symbol is scalable i.e. it gets elevation based on the symbol scale factors in connection with insertion. Otherwise, the symbol is of the real size (linear light, for example).
      • Symbol angle can be 0 or you can indicate it.
    • Attributes

      • Add – Every symbol needs at least the E_ID attribute (ID). Select the desired attribute and insert default value if needed. Click OK and indicate the insertion point.

      • Delete – Remove an attribute.

      • Edit – Edit attribute properties. You can edit the order of attributes in the symbol with the arrow buttons. See Edit attribute properties.

    • Save to user's symbols
      • Database type – Select the type of the database: User or Shared.
      • Folder where the symbols will be saved – Select the desired folder from the drop-down menu, or create a new one by selecting New. The folders can be managed in the Symbols window. The symbols will also be saved to the default icon menu based on the symbol type.
      • Tooltip for the symbol button – Define the tooltip shown when hovering on the symbol button.
      • Show icon area manually – Outline the area you want to show in the symbol button.

  5. Click OK.

Edit attribute properties

In the Save symbol dialog, click Edit to open the Attribute properties dialog.

  • Pin – Consecutive number for pin attributes.

  • Part number – Compiled symbols require the part number. If different symbols are used in different occurrences of the device and the symbols have the same attributes while they mean different things, you have to define a part number, which separates the pins from each other.

    E_PINA001[112], Value: 1, Part number: 112

    E_PINB001[112], Value: 2, Part number: 112

    E_PINA001[114], Value: 3, Part number: 114

    E_PINB001[114], Value: 4, Part number: 114

    E_PINA001[116], Value: 5, Part number: 116

    E_PINB001[116], Value: 6, Part number: 116

    E_PINA001[202], Value: 13, Part number: 202

    E_PINB001[202], Value: 14, Part number: 202

    E_PINA001[201], Value: 21, Part number: 201

    E_PINB001[201], Value: 22, Part number: 201

    E_PINA001[101], Value: A1, Part number: 101

    E_PINB001[101], Value: A2, Part number: 101

  • Attribute name – Name is generated from the attribute, pin number and part number.

  • Prompt – User's can see this prompt/description when they use the symbol.

  • Default value – Default can be defined or left blank and ask attribute value on symbol insertion.

  • Ask attribute value on symbol insertion – Asks value for this attribute when symbol is inserted to drawing. Uses default value if one is given.

  • Attribute visible – Is attribute visible or hidden.

  • Reposition attribute

  • Alignment and Vertical alignment – Attribute horizontal and vertical alignment.

  • Appearance – Size, angle (in degrees) and color of the attribute. The angle is typically 0, for vertically readable attributes 90 and 270. Other free angles are also supported.
