Create a new setting file

Then, we will practice using setting files with a sample drawing using the default setting file. Let's first create a new setting file, and then change the symbol colors in the drawing with it.

Do the following:

1. Select Electrical tab > Settings group > Setting files. The Setting files management dialog opens.

2. Click New. The Setting file dialog opens.

3. Enter Exercise as the name.

4. For Template setting file, select E-2021T1, based on which you will edit your own file.

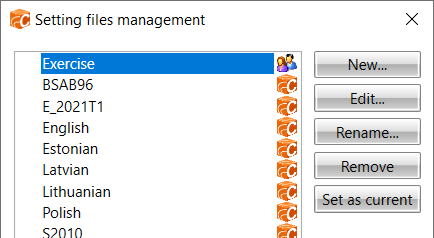

5. Click OK. The new file is now shown in the list.
