Edit the setting file

Let's continue by editing the setting file. You can close editing at any stage you want – you can always come back by selecting Electrical tab > Settings group > Setting files management and start editing by clicking Edit.

The Setting column shows the system ID. We will utilize the naming logic in filtering.

Do the following:

Select the Exercise file you just created.

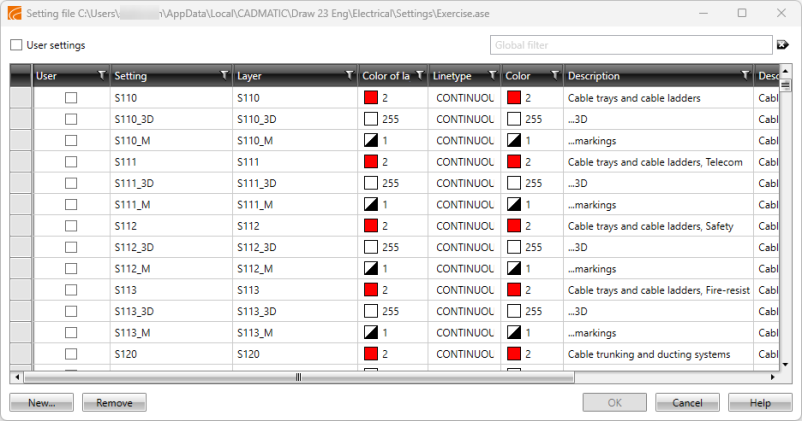

Click Edit. The Setting file [File path] dialog opens.
In the Global filter field, enter wires.
Click the Setting column header. The program sorts the list alphabetically based on the name of the setting. The first setting is now S2_C.
Select the first row, and with Shift pressed down select the last row starting with the letter S.

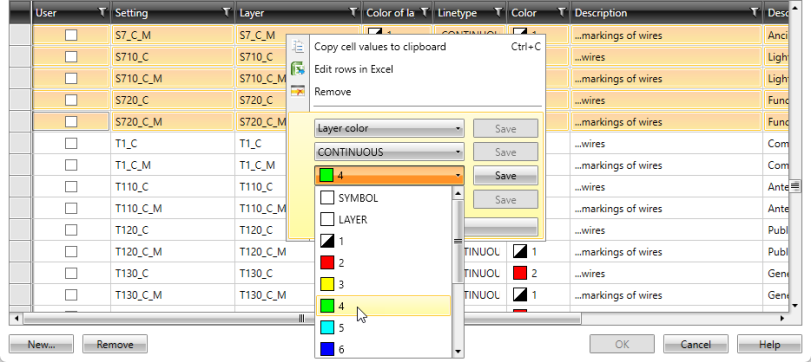

Right-click, select 4 from the Color drop-down menu, and click Save.
Click the Setting column header again. The first setting is now T850_C.
Select the first row, and with Shift pressed down select the last row starting with the letter T.
Right-click, select 7 from the Color drop-down menu, and click Save.
Stop editing the file by clicking OK.
