Insert coils

Next, we will insert control circuit symbols according to the example drawing. Let's start with coils.

Do the following:

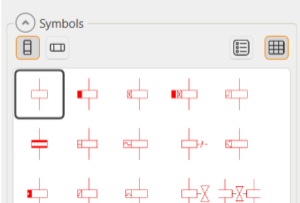

  1. In the In the Symbols window, select Coils and the coil symbol:

  2. Insert the symbol two raster points (2x3,5mm) above 2N.

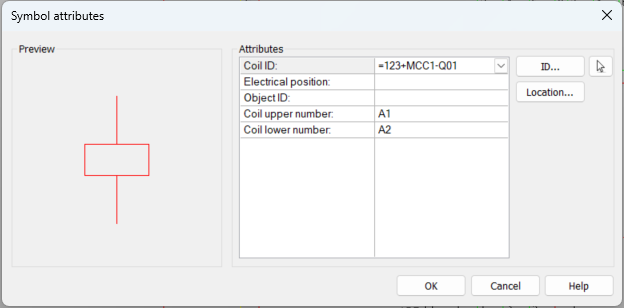

  3. Define the following:

    • Coil ID – From the drop-down menu, select =123+MCC1-Q01. The =123+MCC1 part will be removed when the symbol is inserted because the same information is included in the drawing frame.

    • Coil upper number – A1

    • Coil lower number – A2

  4. Click OK.

  5. Insert the coils Q02, K91 and K92. You cannot select K91 and K92 from the drop-down menu so you need to enter them manually.
