Insert auxiliary contacts

Let's insert auxiliary contacts below the coils.

Do the following:

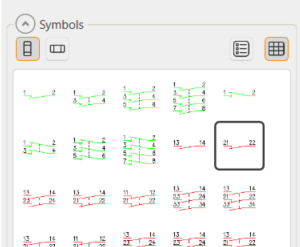

1. In the Symbols window, select Contact packs and insert the contact pack symbol:



2. Select Q01 as the contact pack ID, and click OK.

3. Insert another symbol into the drawing, and select Q02 as the ID.


   Tip: To insert the same symbol again, you do not need to go to the symbol menu. Instead, right-click to insert it.

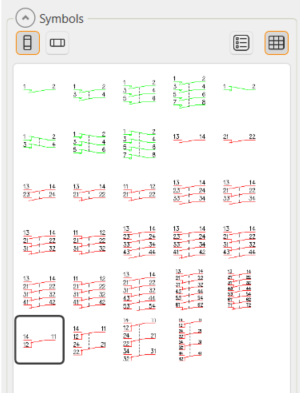

4. In the Symbols window, select Contact packs and insert the contact pack symbol:



5. Enter K91 as the contact pack ID, and click OK. You cannot select the ID from the drop-down menu so you need to enter it manually.

6. Insert another symbol into the drawing, and enter K92 as the ID. You cannot select the ID from the drop-down menu so you need to enter it manually.
