Scantlings

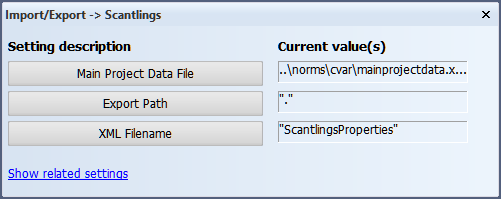

Import/Export > Scantlings

Set the options for the Hull > Export > Scantlings > Mars2000 function in the 3D-Contek application.

Main Project Data File

Select the file containing the SWBMSF distributions and additional material information that is not defined elsewhere in CADMATIC Hull. This should be an Excel file. The default is <project>\norms\cvar\mainprojectdata.xlsx. See Main Project Data File for more information.

This setting is stored as MainProjectDataFile in <project folder>\norms\cvar\scantlings.conf.

Export path

Define the folder where the export file will be created. Type in the path or select from the available fields. The default is <project_path>\<active block>.

XML Filename

Define the export file name. Type in the name or select from the available fields. The default is ScantlingsProperties.xml.

The settings are saved to <project>\norms\cvar\scantlings.conf.
