Integration Settings

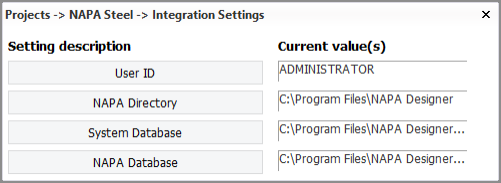

Projects > NAPA Steel > Integration Settings

Define the settings for integrating NAPA databases with the NAPA Steel Integration function. These settings are also used by the Shape Import application when importing 64-bit NAPA databases (see Hull Shape Import).

Tip: You can use the Opening Parameters overview in the Help > About NAPA Designer function in the NAPA Designer program to get the required integration settings values.

User ID

Define the user name for NAPA Steel.

NAPA Directory

Define the installation directory of NAPA Steel software.

System Database

Define the location and name of the system database file (sysdb.db) for NAPA. The file is located in the \bin\Resources folder of NAPA software installation. NAPA installation data is stored in this file.

Napa Database

Define the location and name of the NAPA database file (napadb.db). The file is located in the \database folder of NAPA software installation. This database contains the NAPA data objects that are accessed by users.
