CADMATIC Hull - Tribon Hull interface

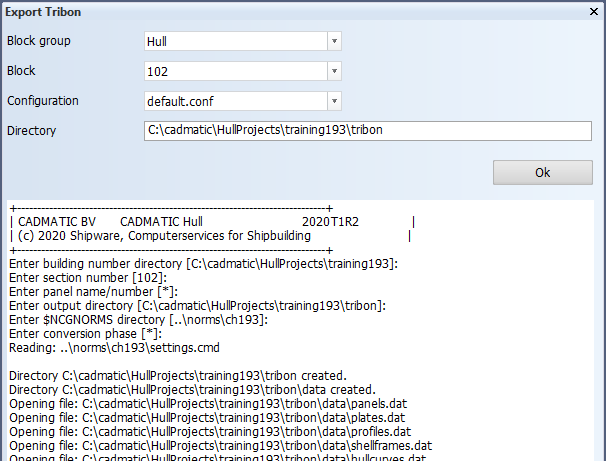

A conversion function for converting blocks from CADMATIC Hull to Tribon Hull is located in File > Export > Tribon in the 3D-Contek application. In this function you select the block to convert, the configuration to use, and the output directory. The conversion program will use the current %NCGNORMS% directory and execute all conversion phases. A configuration can be selected from configuration files in the %NCGNORMS%\tribon directory. Conversion files must have file extension .conf.
