Displaying shell plate orientation

The orientation of a shell plate can be included in the plate cutting data by adding text markings.

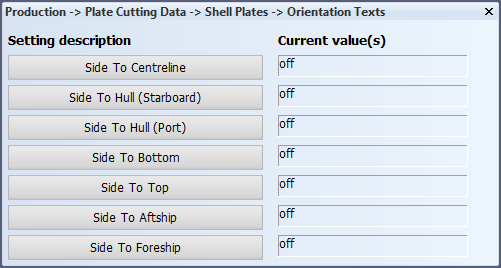

Orientation texts for shell plates are defined by settings in Production > Plate Cutting Data > Shell Plates > Orientation texts in the System Management.

You can choose from the following orientations:

• side to top
• side to bottom
• side to foreship
• side to aftship
• side to centreline
• side to hull (starboard)
• side to hull (port)

The values off, uit or no text disable the setting; in this case no text will be displayed for that side.
