Piping Isometrics & Spools specific attributes in dimension table

Specifies how to draw a flexible curve.

This attribute can also be set in the corporate catalog, to override the value in the dimension table.

Specifies a tag record that draws a special symbol. This can be used when conventional 2D isometric symbols are not suitable for the component in question. Also, this is the only way to define the isometric symbol when the geometry type of the component is DM_GT_FLEXCOMP. These components are not dimensioned in isometric drawings. For more information, see Special 3D iso symbol definition.

This attribute can also be set in the corporate catalog, to override the value in the dimension table.

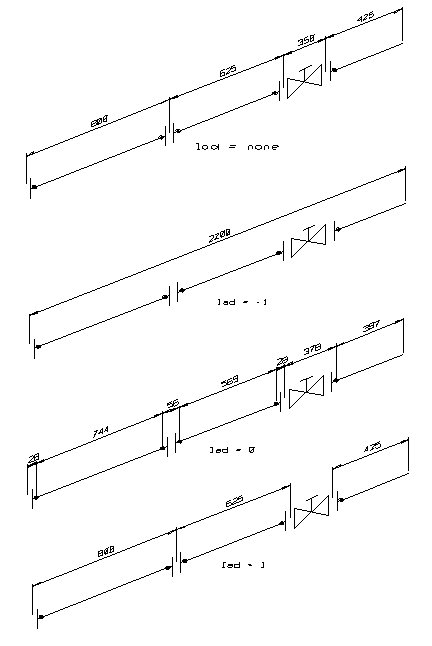

The purpose of this attribute is to affect dimensioning of individual parts in default annotation. Value can be:

• -1 – No dimension for the part.

• 0 – Dimension point is the part's first point.

• 1 – Dimension point is the part's second point.

• 9 – Part gets its own dimension.

If not set, Piping Isometrics & Spools uses the values in the Colors, Lineweight & Layer Settings.

If not set, Piping Isometrics & Spools uses the values in the Colors, Lineweight & Layer Settings.

Specifies the name of the detail symbol that is inserted in automatic annotation, provided this part exists in the isometric drawing. Using the detail symbol allows showing installation details for this part. The settings for detail symbols on the isometric sheet are defined in Automatic Annotation Settings > Other labels > Part's detail symbols.

This attribute can also be set in the corporate catalog, to override the value in the dimension table.
