Miscellaneous Settings

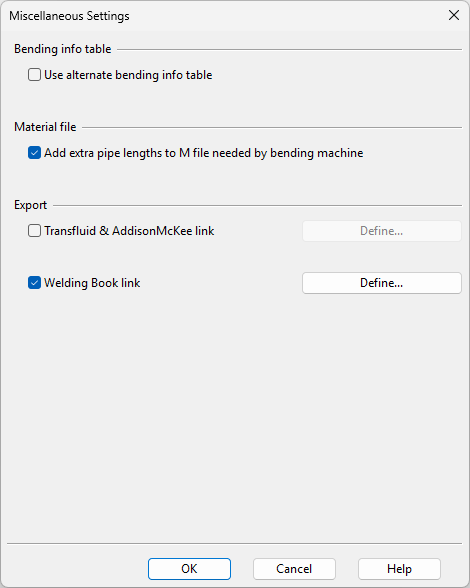

In the Miscellaneous Settings dialog of isometric drawings created in Plant Modeller, you can define the following settings.

Show/hide image

Bending info table

• Use alternate bending info table – If selected, isometric drawings use an alternative bending information table.

Material File

• Add extra pipe lengths to M file needed by bending machine – This option adds extra pipe length to the material file needed by the bending machine. Clear the option if extra lengths are not to be added.

Export

• Transfluid & AddisonMcKee link – If selected, you can configure and perform Transfluid and Addison McKee file exports. See Transfluid and Addison McKee Link.

• Welding Book link – Welding Book file export allows Plant Modeller to interface with the Welding Book weld management application by exporting the welds of an isometric drawing to a Microsoft Excel file. For more information, see Welding Book Link.
