Isometric symbol editor

You can create and edit isometric drawing symbols with a special symbol editor. The symbols are drawn in a square of 100 x 100 units.

Starting to create a new isometric drawing symbol or double-clicking an existing one opens the Edit Symbol dialog.

Insert

Use these commands to draw lines and arcs in the symbol. When picking a point, you can use the navigation commands listed in the context menu, as well as snap to existing vertex points.

Line – Select this to draw lines by first picking the start point and then one or more additional points along the required path.
Arc – Select this to draw arcs by first picking the center point and then the start and end point.

Modify

Use these commands to manage the drawing objects of the symbol.

Move – Select this to move existing drawing objects.
Copy – Select this to create copies of a set of selected drawing objects.
Delete –Select this to delete a set of drawing objects.
Clear – Select this to delete all drawing objects.

Attributes

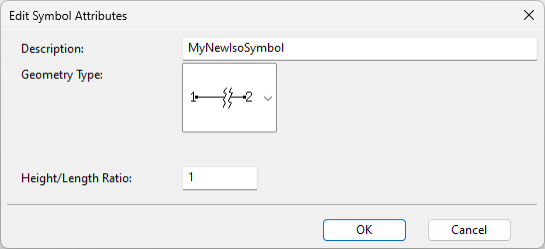

Modify – Opens the Edit Symbol Attributes dialog where you can specify the following.
- Description – Enter a name for the isometric drawing symbol.
- Geometry Type – The geometry type must be the same as what is specified in the dimension table. The linking point of the symbol appears in the drawing area based on the geometry type.
- Height/Length Ratio – The final appearance of the symbol depends on the Settings for Piping Isometrics & Spools ("Symbols"/"Length of Symbol"). By default, the symbol is 20 mm high. For geometry types DM_GT_2P , DM_GT_VALVE and DM_GT_PENETR, the width depends on the height/length ratio. For the other types, the width is equal to height.
