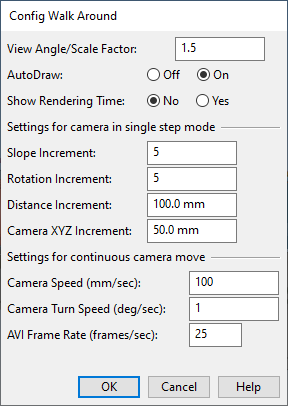

Walkaround settings

You can define the following settings:

• View angle/scale factor.

• AutoDraw on/off. If you have enabled Auto Draw feature in walkaround configuration then the active scene gets rendered every time that you change any parameter in the scene. In case you have a large scene and a slow OpenGL platform you may want to turn off Auto Draw and get scene re-rendered by pressing button Draw in the scene setup tool.

• Show rendering time. No/Yes.

• Settings for camera in single step mode:

  • Slope increment as degrees. The angle for changing the slope of the camera.

  • Rotation increment as degrees. The angle for rotating the camera.

  • Distance increment. When you walk in the model, the length of one step.

  • Camera XYZ increment. When you move the camera, one camera movement.

• Settings for continuous camera move:

  • Camera speed (mm/sec).

  • Camera turn speed (deg/sec).

  • AVI frame rate (frames/sec). This is needed when you create AVI files.
