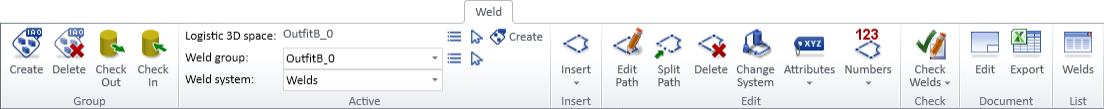

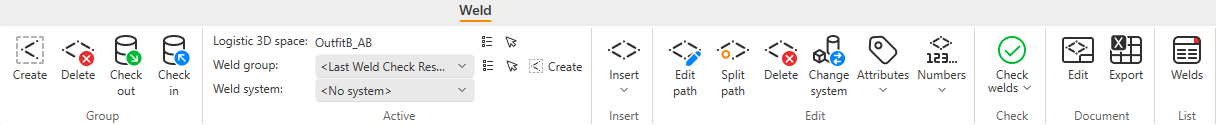

Weld tab

Show/hide image

The Weld tab of Plant Modeller contains tools for managing welds and welding documents.

Project administrator must define the shared project settings, as described in Weld Drawing and Welds.

Project administrator must also allow welding in the System of the model objects to be welded, as described in Managing systems.

For detailed information about administrating welds, see Administrating welds.

For a user-level tutorial, see Weld tutorial.
