Edit device

Let's edit the device ID.

Note: Avoid editing the symbol ID attribute in the properties dialog. It only changes the current symbol ID and not the other occurrences.

Do the following:

Select Home.
Use the search function: type F10 to find one device from +MCC1.

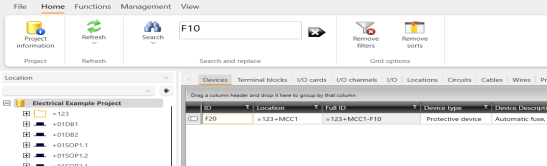

Double-click the ID field, edit the ID directly in the grid from F10 to F20 and press Enter.

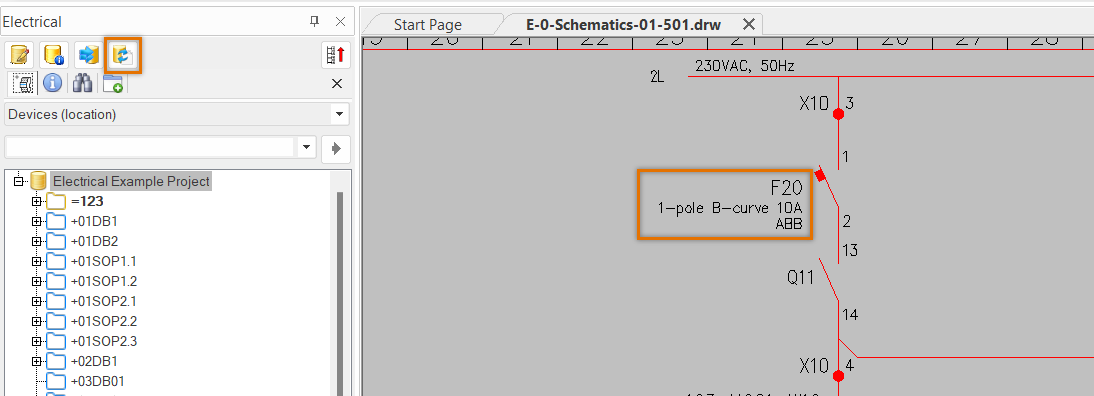

Go back to the drawing side, and click the (Synch changes from database to drawing) button in the Electrical window. The device ID is changed to F20.

This is similar to what we did earlier when editing Q10 via the project tree on the drawing side.
