Create a new layout

In this exercise, create a new layout because the drawing of the building does not fit on one layout.

Do the following:

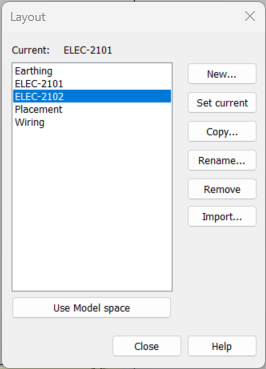

  1. Select Tools tab > Layout group > Layout. The Layout dialog opens.

  2. Click New. The New layout dialog opens.

  3. Enter ELEC_2102 as the name, and click OK.

  4. Select the layout you just created.

  5. Click Set current.

  6. Close the dialog.

  7. Select Electrical tab > Frames and labels group > Drawing sheet. The Set sheet dialog opens.

  8. Enter the information for the drawing sheet. For instructions, see Set the drawing sheet.

  9. Insert a drawing label on the drawing sheet, and fill the information on it. For instructions, see Add a drawing label.
