Insert change-over contacts

Let's insert change-over contacts and update cross-references.

Do the following:

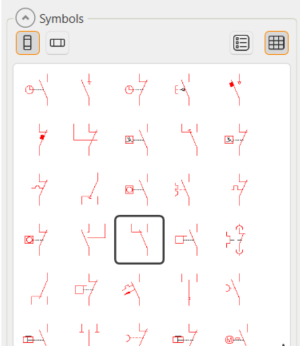

1. In the Symbols window, select Contacts and insert the change-over contact symbol:



2. Define the following:

   • ID – K92 and K91

   • Contacts upper number – 12 and 14

   • Contacts lower number – 11

3. Click OK.
