Insert symbols to the second sheet

Let's insert symbols to the second sheet according to the example drawing.

Do the following:

1. Insert coils:

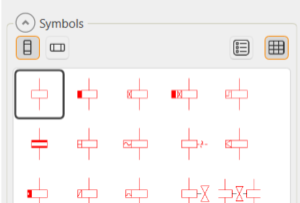

   1. In the Symbols window, select Coils and insert the coil symbol:



   2. Define the following:

      • Coil ID – From the drop-down menu, select K10 and K20.

      • Coil upper number – A1

      • Coil lower number – A2

2. Insert the auxiliary contacts:

   1. In the Symbols window, select Contact packs and insert the contact symbol 1xchange-over contact.

   2. Enter K10 and K20 as IDs.

3. Insert diodes next to the coils:

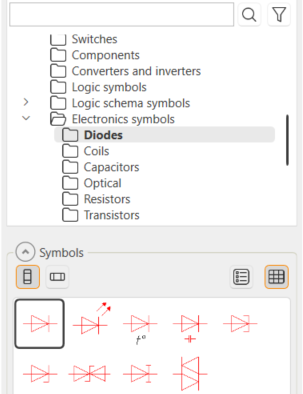

   1. In the Symbols window, select Diodes from the Electronics symbols menu and insert the diode symbol:



   2. Insert the symbol into the drawing.

      Tip: Turn the diode with F8.

   3. Leave component ID empty.
