Release notes

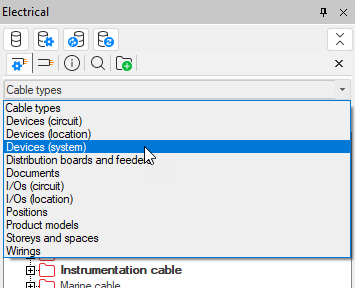

The objects in the drop-down menu are now in alphabetical order:

The project tree has been changed as follows:

• The functions have been separated into logical groups separated by a line where necessary.

• The functions available in the right-click menus have been reorganized. For example, all the creation functions are now below the Create new option:



• By default, symbol descriptions are now shown in the design language instead of the application language. However, the user can change this in the general Electrical settings.

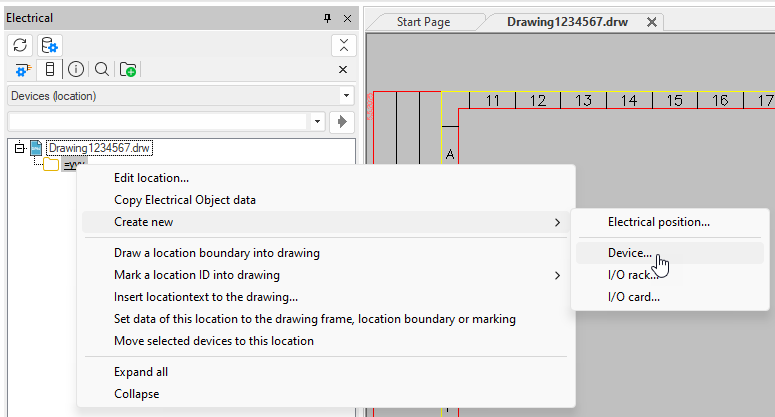

• The Devices (location) project tree has been changed as follows:

  • Project and location nodes now have the option to create a new device: Create new > Device.

  • For locations, the Add location function has been changed to Create new > Electrical position.

• In the Devices (system) project tree, the system node now has the Create a new device option.

In project settings, there are now separate unpaired cross-reference settings for diagrams and arrangement drawings: Unpaired cross-references (Diagrams) and Unpaired cross-references (Arrangement drawings). A new option, Do not mark, is available for both. This option allows you to keep the unpaired reference in the drawing but not mark it with a cross:

Do not mark:	Mark:

New design languages have been added into the project settings. The project language affects the project’s wiring color abbreviations, default frame, and symbol descriptions, for example.

In general settings, the Start correct application, if drawing type is defined setting has been removed as it is no longer possible to change the sub-application (Schematics, Layout, etc.) manually; all functions of the sub-applications have been merged into one Electrical application, and the correct ribbon tab and functions are shown automatically based on the drawing type.

In general settings, there is a new Symbol descriptions in user interfaces setting available. The user can select application's language or design language as the language in which the symbol descriptions are shown. If the description is not found in that language, the other option is used. If the description is not found at all, the description will be empty.

Instead of the icon menus, symbols will now be selected in the new Symbol selection dialog in all functions.

• By default, the symbols are shown based on the drawing type but in some functions it is possible to select another drawing type from the Electrical symbols drop-down menu.

• There are five tabs which filter the symbols shown in the Symbols section:

  	for Electrical symbols
  	for symbols in the current drawing
  	for symbols in the current project
  	for user's own symbols
  	for symbols marked as favorites

• The symbols you add to your favorites will also be available in the Symbols window, on the (Favorite symbols) tab.

• If the function allows selecting only one symbol, it can be selected by double-clicking. If the function allows selecting several symbols, double-clicking will move them to the selected symbols.

The new dialog will open, for example, when

• Selecting the default symbol for cable markings and cable package markings and wire markings in project settings

• Selecting the symbol for location, device, additional information, and circuit boundaries

• Inserting feeder occurrences

• Inserting terminal blocks/connectors

• Creating scalable symbols

• Saving your own single-line symbols

• Adding symbols for wirings in arrangement drawings

• Defining 3D equivalences and default equivalences

The Symbols window has been changed as follows:

• You can now save and insert your own symbols via the new (User's symbols) tab:

  • You can define the folder structure yourself, i.e. you can create folders and subfolders and name and rename them as you like.

  • You can import your own symbols from the old icon menus.

  • You can start the Save symbol function via this tab.

  • You can define your own symbols as favorites, in which case they are also available via the (Favorite symbols) tab.

• On the Symbols in another drawing tab, it is now possible to remove drawings from the list by clicking the (Remove) button next to the drawing name:



• If a drawing with no drawing type defined or a drawing with no symbols is active, the Symbols window will show multi-line diagram symbols by default.

For more information, see the following instructions:

• Layout: Symbols window and Saving your own symbols

• Single-line: Symbols window and Saving your own symbols

• Schematics: Symbols window and Saving your own symbols

• Cabinet Layout: Symbols window and Saving your own symbols

Saving user's own symbols has been changed as follows:

• The Add to icon menu section is now Save to user's symbols.

• There is a new drop-down menu Database type from which you can select Shared or User as the database where the symbol will be saved to.

• The Icon menu to where the symbols will be saved drop-down menu is now Folder where the symbols will be saved. The folders can be managed in the Symbols window.

• Tiptext of the symbol button is now Tooltip for the symbol button.

For more information, see the following instructions:

• Layout: Saving your own symbols and Symbols window

• Single-line: Saving your own symbols and Symbols window

• Schematics: Saving your own symbols and Symbols window

• Cabinet Layout: Saving your own symbols and Symbols window

The storey settings have been changed as follows:

• It is now possible to define IFC angle for the site and the building, either by entering the value or indicating two points in the drawing.

• Above the tree structure, there are new Add, Copy and Remove buttons with which you can, for example, add and copy storeys and remove drawings.

• The buttons for buildings, storeys and drawings have been moved to the top of each section. Furthermore, the icons have been replaced by text: Add, Set angle, Copy, Change drawing and Remove.

• There is a new button, Alignment cube, with which you can create the same alignment cube to all drawings. The alignment cube enables viewing the location of the data model. The alignment cube will always be included in the IFC export.

When starting the Leader to element's markings layer function via the right-click menu, the selected object's system and layer are now used.

It is now possible to define number, name and/or area to be shown for area boundaries. Previously, the name was always shown.

By default, wire marking is not added for short wires (10x scale) – now, it is possible to add the wire mark later with the Wire marking (automatic) function or by right-clicking the wire and selecting Add wire marking.

When a short wire is selected, the application will confirm if you want to add the marking. If you selected several wires, you can select Yes to insert the marking to all the selected wires whereas No will skip the short ones and only insert it to the longer ones.

On the Hole functions tab, the Other hole symbols button now opens the Symbols window instead of the symbol menu, offering an easier way to insert provision symbols.

It is now possible to divide the space also by right-clicking the space wall and selecting Divide space.

Network calculation has been changed as follows:

• You can now view group/feeder numbers and distribution board IDs for all connected devices, cables, and distribution boards.

• You can automatically generate single-line diagrams based on an electrical network in an arrangement drawing.

• In the ribbon, in the Single-line toolset, Loop diagram has been renamed as Draw network.

When opening Electrical for the first time after installation, all the menus were not included.

In the Symbols window, the symbol preview was shown incorrectly when the symbol included text.

User rights did not work correctly with the revision functions.

In Setting files management, the Close and update drawing function did not work as should.

If there was no frame/label in the design language, the default frame/label inserting function did not insert anything. Now, if there is no frame/label in the design language the frame/label will be inserted according to the user interface language (English or Finnish).

When moving a LED strip, the ID attribute did not move.

The running ID was not set on and off correctly.

When editing user's own symbol, a new symbol was created instead.

The Cabling to rectangular area and Cabling to polygon area heater functions did not remember the previous settings if the functions were started right after the previous use.

Changing the Cable Customer ID visibility in drawing project setting was not updated to the drawing before closing and opening it again. Furthermore, the ID did not update at all for cable wire marks.

When copying a marking with storey information, the storey was not updated.

When copying group marks, new ID was not suggested for protective devices as for the group marks.

When wiring had been started from a distribution board, changing the wiring style resulted in an error.

When cable creation was started from a tree view, the new cable did not always get the class information from the selected cable type.

When leaving cableway edit without making any changes, filter was always left on.

The cableway references were handled incorrectly when opening a drawing.

Elevation was shown incorrectly when negative.

When printed, vertical cableways did not follow user settings.

Inserting a group mark activated insertion of symbols next to each other.

The length of cables in a cable package were calculated incorrectly with metric unit.

When creating new additional info boundary types, system was not always set right.

The Automatically add symbol to 3D device group when inserting left of right setting did not take the maximum symbol width into account and therefore inserted symbols incorrectly.

The (Toggle 3D on/off) function generated symbols to the active layer instead of the system layer.

In print mode, a sticker added via the auxiliary functions was of wrong size.

The Import groups data to manufacturers distribution board schema function was missing from the ribbon. It is now available on the Distribution Board tab, in the Auxiliary functions drop-down menu.

After removing a distribution board symbol in distribution board properties, a random symbol was added automatically.

When the drawing was not in a project, inserting the default frame did not follow the design language.

Changing sheets with the Page up ad Page down keys was slow when there were locked layers.

Changing the sheet via the drop-down menu on the ribbon did not work if there were empty sheets in the drawing.

Creating a user symbol via the Symbols toolbar did not work correctly.

I/O symbols were inserted based on the device GUID and part number which sometimes resulted into the symbol being replaced by another one with the same part number.

When using wiring mark user symbols converted from an earlier version, the E_ID attribute was shown for wiring marks and it was not possible to hide it.

Adding or copying a cable marking when the project setting Cable Customer ID visibility in drawing was set to Visible resulted in the information not updating immediately into the drawing.

When removing cable termination references, reference occurrences sometimes stayed in the run-time database causing problems when redrawing.

The project tree was not always updated when removing cables or cable packages.

When a drawing was opened without the project database, all the cable markings were moved to the active layer.

When references were on different sheets and drawing the reference was canceled, the first part of the reference stayed in memory, causing problems when using the function next time.

When editing a drawing made in a version released prior to 2020, it was not possible to change the angle of upward or downward reference arrows to 0.

References were added for busbars when adding references from terminal strips to devices and from devices to devices.

When drawing terminal strips or inserting terminal blocks, numbers and part numbers were not always completely shown.

The Additional information function showed all project's additional information as selected.

Description that was removed from a location boundary when edited was shown again when the drawing was saved and reopened.

Saving in DWG and moving sheets next to each other did not work as should.

When creating a user frame in some other than the application's language, the language was not saved correctly.

Attributes were inserted incorrectly when the symbol angle was 180 or 270°.

Attributes for a device inserted into a drawing were locked incorrectly when the drawing was not in a project.

Selecting a protective device in the New group dialog did not work as should.

When a group had several feeders and an individual feeder was edited, changes were not always saved to the database.

Cableways were not shown correctly when very low values had been used when scaling the drawing.

The list of electrical symbols did not show user symbol descriptions.

3D generation of a polygon shaped floor heating drawn with the border line only did not work.

The function for inserting feeder symbols was missing from the Distribution boards and groups project tree.

Running numbers were not assigned correctly for busbars that were created automatically.

The Symbol selection dialog did not always show symbols correctly.

When copying items in distribution board edit, all the related information was not copied.

In the Symbols window, importing symbols from the old menus did not work as should.

Canceling the redraw function resulted in the application crashing.

In the Draw terminal strip dialog, creating, editing and deleting pins did not work.

Adding a second distribution board resulted in an error.

In the Symbols window, user's own symbols were shown according to the active drawing's type instead of the type selected on the (Settings) tab.

The tooltip given for a user symbol was not used as the default device text for the device created.

Some distribution board symbols were missing from the Symbol selection dialog.

Feeder texts were not saved correctly.

When listing objects with length, LED strips with length were not taken into account.

In the Distribution boards and groups project tree, the Connect to a supplying distribution board function did not work if the target distribution board already existed with a defined cable.

When several types of light fixtures had been selected, the Insert position markings function did not insert position marks for LED strips.

Space information did not update correctly for locations.

In an Arrangement (not in scale) type of drawing, it was not possible to change a symbol to another because the drawing type was not recognized.

The STPKESK4 and STPKESK9 symbols were missing from the Symbol selection dialog.

In the Symbols window, changes made on the (User's symbols) tab in the All view were not saved.

When selecting a 3D symbol for a scalable symbol, the symbols were shown incorrectly in the Symbol selection dialog.

ID format was missing from some data network symbols which resulted in them not getting an ID.

If the wiring reference special format included the pin description, the marking was formed incorrectly.

An error in saving your own symbols removed user's rights to the user symbols.

Changing the symbol direction for a user symbol did not work correctly.

Creating symbols (relays, for example) via the old symbol menus did not work as should.

Queue printing resulted in the application crashing.
